FMV 21 - sprinkler type vertical profile, 146m2 / m3

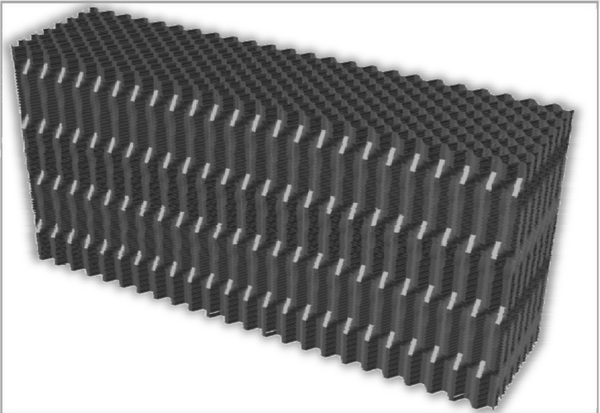

FMV 21 is a product-type absorber made from thermoformed PVC (polyvinyl chloride) sheets of different thickness, which allows the building of blocks of different strength according to the respective requirements.
Design
The height of the wave on the sheet itself is 21mm.
FMV 21 is a vertically-grooved filler with increased distribution / distribution of water
Combination of high area and low clogging, which makes it suitable for more polluted water
Application
Fixed biomass to bio-wastewater treatment plants
Water cooling towers
Water scrubbers
Features and dimensions -
High active area
Slightly retaining sludge
Highly polluted water
It is formed by glued molded PVC sheets with a wavelength of 21 mm and a 90 degree inclination
The PVC material used to manufacture this filler / block / is in compliance with standards such as CTI 136 and ASTM E 84, offering a number of advantages
- Lightweight material, easy to install
- Only extinguishing and fire resistant material (ASTM E-84);
- High mechanical strength, particularly when compressing
- Corrosive and chemical resistant
- Hydrophilic material - which is also a reason for water retention and the formation of an aqueous film
Specific (Active) areaWave height
Sheet thickness
Void indexMaterial[м2/м3][мм][micron]%[-]14621300-70098PVC Unit dimensions L x W x H in mm
1200 x 300 x 3001800 x 300 x 3002400 x 300 x 3001200 x 300 x 6001800 x 300 x 6002400 x 300 x 6001200 x 600 x 6001800 x 600 x 6002400 x 600 x 600* Dimensions can be adjusted according to specific requirements** Blocks of all sizes are produced in Bulgaria
Design
The height of the wave on the sheet itself is 21mm.
FMV 21 is a vertically-grooved filler with increased distribution / distribution of water
Combination of high area and low clogging, which makes it suitable for more polluted water
Application
Fixed biomass to bio-wastewater treatment plants
Water cooling towers
Water scrubbers
Features and dimensions -
High active area
Slightly retaining sludge
Highly polluted water
It is formed by glued molded PVC sheets with a wavelength of 21 mm and a 90 degree inclination
The PVC material used to manufacture this filler / block / is in compliance with standards such as CTI 136 and ASTM E 84, offering a number of advantages
- Lightweight material, easy to install
- Only extinguishing and fire resistant material (ASTM E-84);
- High mechanical strength, particularly when compressing
- Corrosive and chemical resistant
- Hydrophilic material - which is also a reason for water retention and the formation of an aqueous film
Specific (Active) areaWave height
Sheet thickness
Void indexMaterial[м2/м3][мм][micron]%[-]14621300-70098PVC Unit dimensions L x W x H in mm
1200 x 300 x 3001800 x 300 x 3002400 x 300 x 3001200 x 300 x 6001800 x 300 x 6002400 x 300 x 6001200 x 600 x 6001800 x 600 x 6002400 x 600 x 600* Dimensions can be adjusted according to specific requirements** Blocks of all sizes are produced in Bulgaria
