FMC 12 - spraying structure, 245m2 / m3

FMC 12 is a product-type absorber made from thermoformed PVC (polyvinyl chloride) sheets of varying thickness, which allows the building of blocks of different strength according to the respective requirements.

Design
The height of the wave on the sheet itself is 19mm.

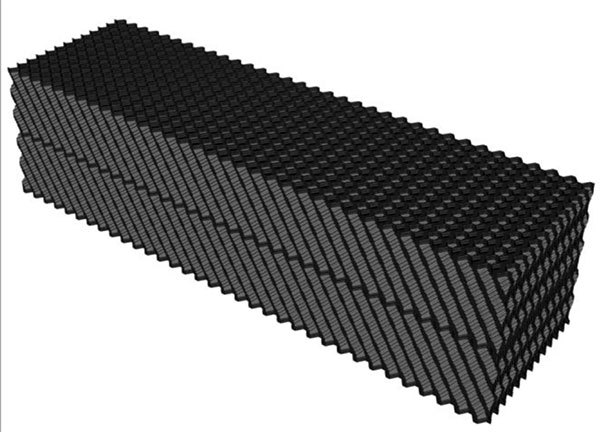

FMC 12 is a filler that is formed by the joining of thermoformed PVC sheets so that grooves below 60 degrees slope are produced. Also a truncated structure - we have a shift in the direction of the slope of each subsequent row of the filler.
This leads to the formation of the so-called honeycomb profile
Channel openings 24mm (12 + 12) mm.

Application
Water cooling towers
Water scrubbers
Stripping columns
Treatment plants
Coalescent separator for non-food products
Panel filters used for picking drops or wet powders in paint booths

Features and dimensions -

High active area
Slightly retaining sludge
Highly polluted water
It is formed by glued together for each other PVC sheets with a wavelength of 19 mm and a slope of 60 degrees

The PVC material used to manufacture this filler / block / is in compliance with standards such as CTI 136 and ASTM E 84, offering a number of advantages
- Lightweight material, easy to install
- Only extinguishing and fire resistant material (ASTM E-84);
- High mechanical strength, particularly when compressing
- Corrosive and chemical resistant
- Hydrophilic material - which is also a reason for water retention and the formation of an aqueous film
  Specific (Active) areaWave heightSheet thickness

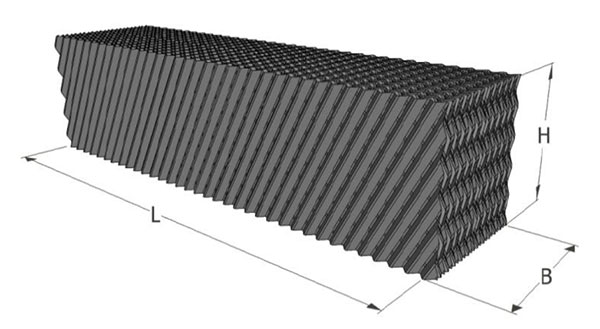

 Void indexMaterial[м2/м3][мм][micron]%[-]2451225097PVC Unit dimensions L x W x H in mm1200 x 300 x 3001800 x 300 x 3002400 x 300 x 3001200 x 300 x 6001800 x 300 x 6002400 x 300 x 6001200 x 600 x 6001800 x 600 x 6002400 x 600 x 600
* Dimensions can be adjusted according to specific requirements
** Blocks of all sizes are produced in Bulgaria
