The DES 130 is a product type - a dropping device made of thermoformed PVC sheets of different thickness.
Design

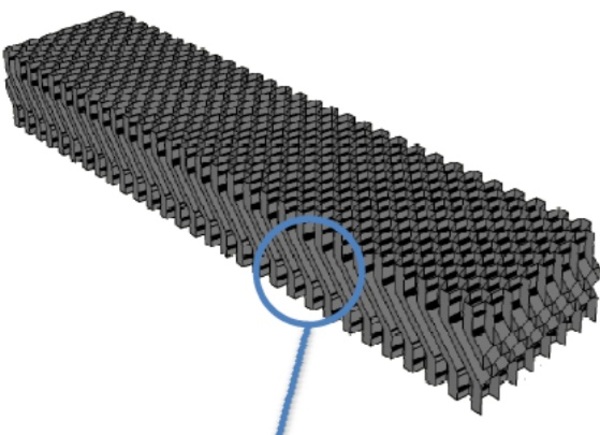

The height of the dropper wave (shown in the picture) is 130mm
The profile is characterized by four changes of direction allowing the separation of the water droplets carried by the air mass.
Application
- Water cooling towers
- Water scrubbers
- Stripping columns
- Inlet of gas turbines
It is formed by gluing of thermoformed PVC sheets
Characteristics and dimensions
The PVC material used to manufacture this filler / block / is in compliance with standards such as CTI 136 and ASTM E 84, offering a number of advantages
- Lightweight material, easy to install
- Only extinguishing and fire resistant material (ASTM E-84);
- High mechanical strength, particularly when compressing
- Corrosive and chemical resistant
- Hydrophilic material - which is also a reason for water retention and the formation of an aqueous film
Размери на блокове L x W x H в мм1200 x 300 x 1301800 x 300 x 1302400 x 300 x 1301200 x 600 x 1301800 x 600 x 1302400 x 600 x 130
Unit dimensions L x W x H in mm

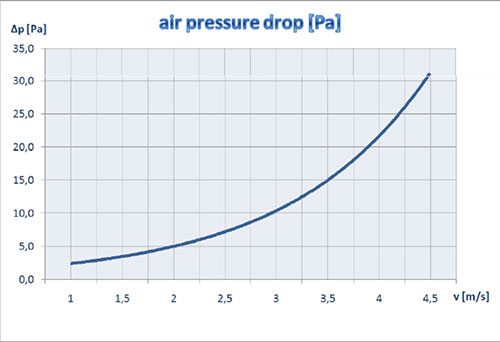

Pressure drop curve
